Feedback Waterproof Linear Actuator IP68M
Feedback Waterproof Linear Actuator IP68M
Model: PA-10-HALL
Couldn't load pickup availability

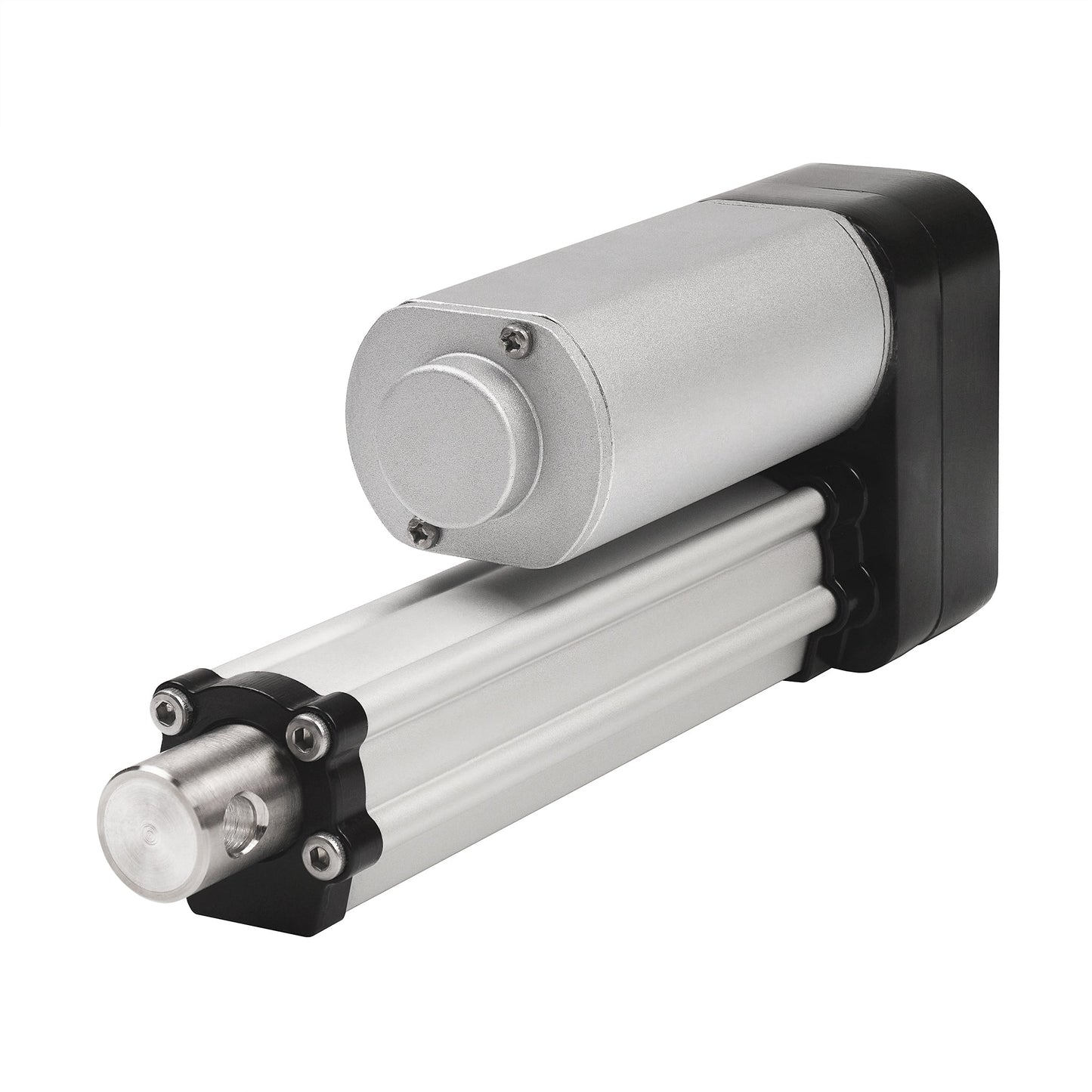

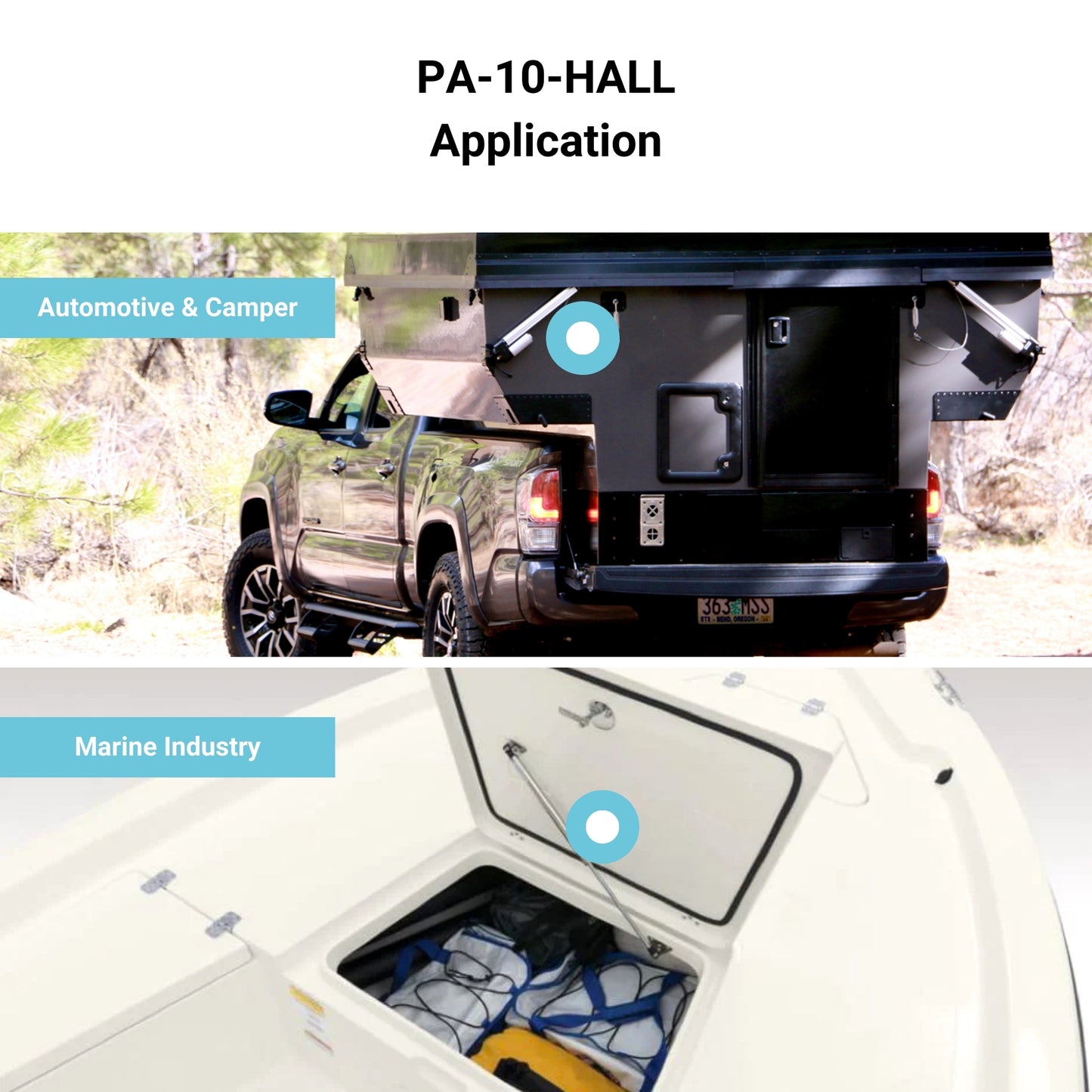

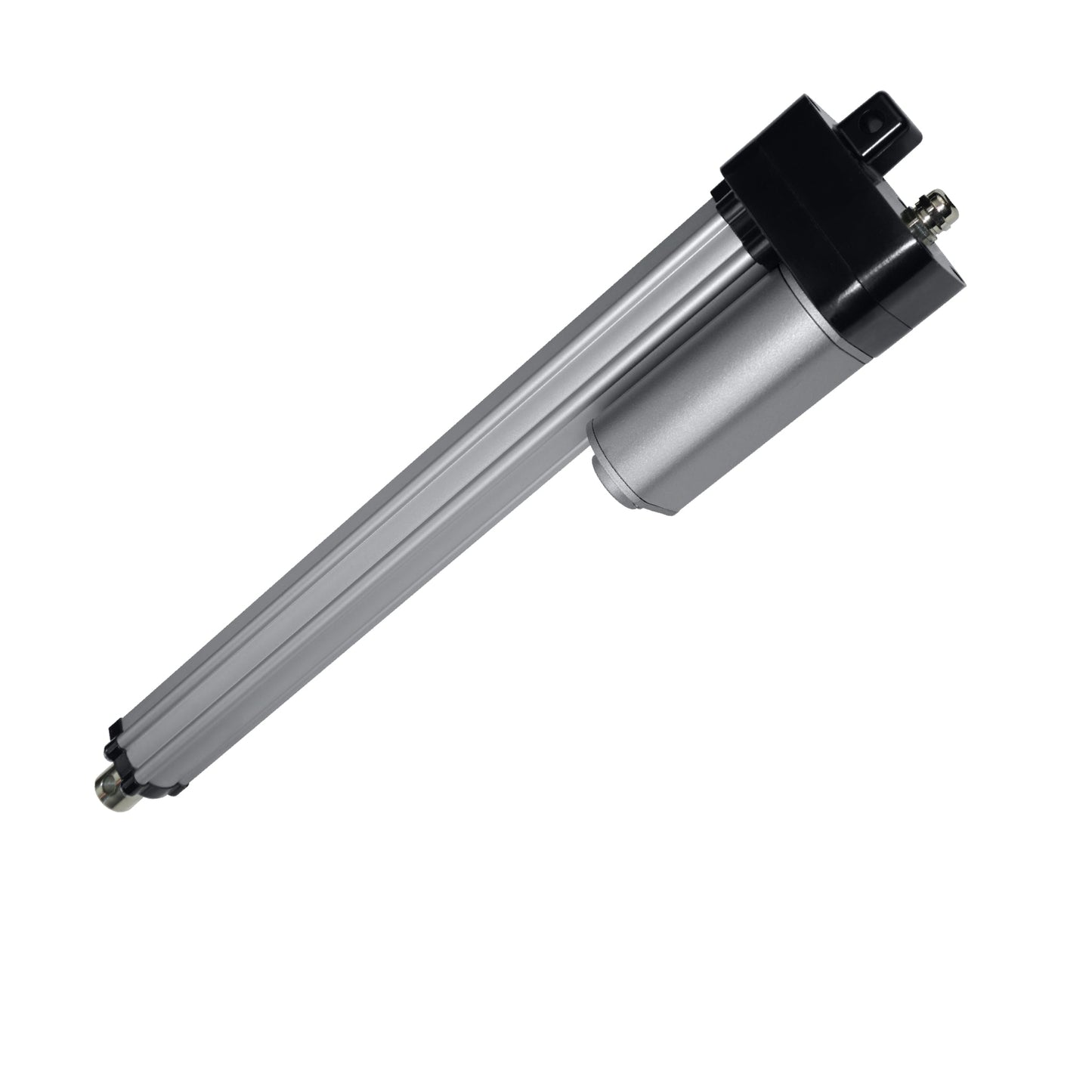

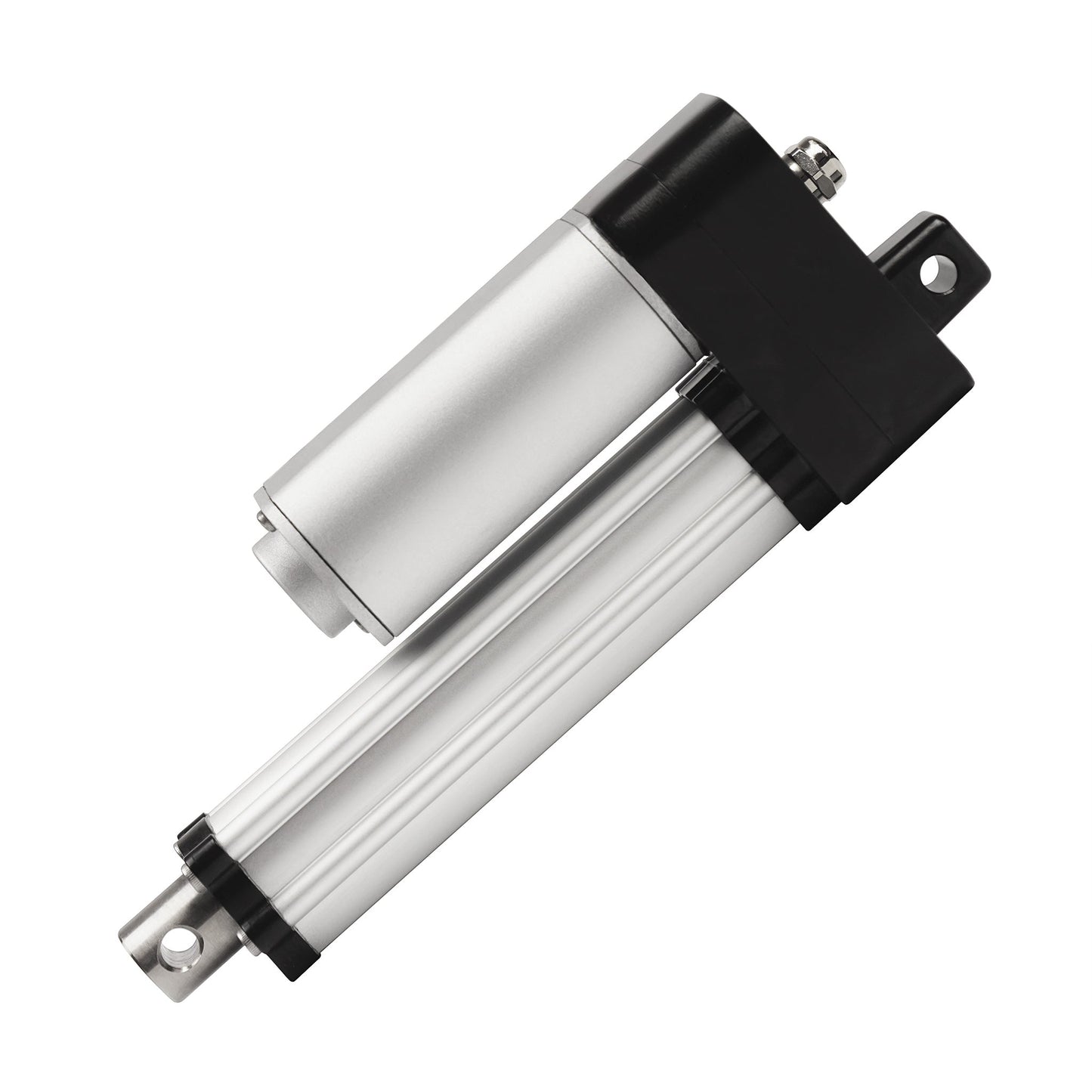

The PA-10-HALL uses built-in proprietary hall effect feedback, which allows for synchronization, speed control, and position control. Hall effect feedback is crucial to applications where multiple actuators must travel in sync. The standard PA-10 like the PA-10-HALL both have the highest IP rating amongst the Progressive Automations’ line of products with a weather protection rating of IP68M and IP69K, allowing the actuator to be fully submerged while in motion and can withstand high-powered water jets while not in motion. In combination with its compact size and high-force rating, the PA-10-HALL is excellent for marine, automotive, and agricultural applications.
For applications that require added corrosion resistance, the PA-10-HALL can be custom ordered in a Salt Spray rated version which features specialized porcelain plated housing. This has been vigorously tested for up to 400 hours of salt spray exposure, ensuring that it will perform in the harshest environments.

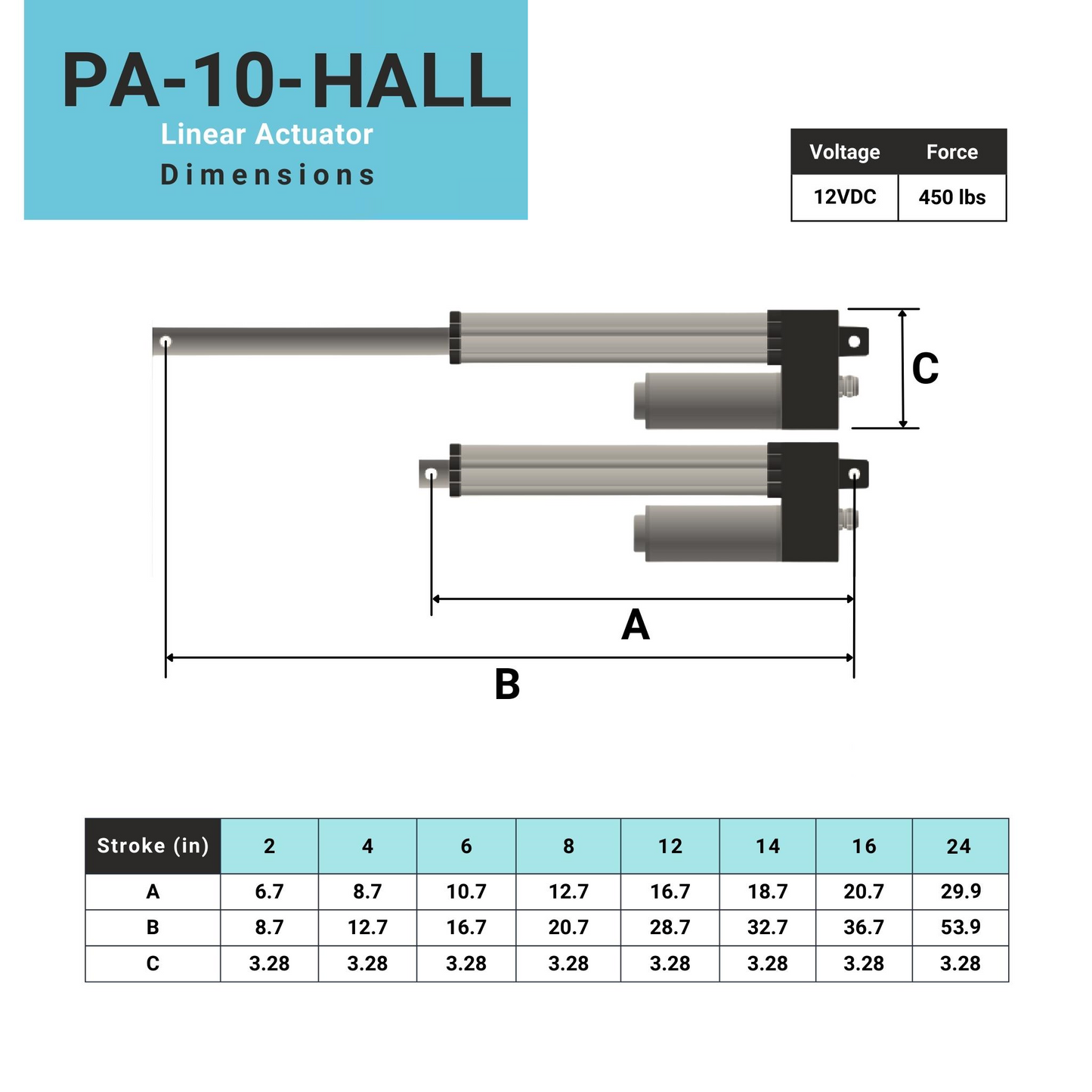

For more information on specifications, dimensional drawings, and customization options, please see the PA-10-HALL datasheet. Please see the IP-Rating Guide for more information on these ratings.
Actuators Comparison ChartMOUNTING OPTIONS:
The BRK-09 bracket, compatible with the PA-10-HALL, can be used on either the stroke or motor-end mounting locations and allows for over 180° rotation.
CONTROL SYSTEMS:
The PA-10-HALL is compatible with the wireless PA-40, PA-40-24VDC, and PA-41 hall effect sensor control box as well as the wired FLTCON control box series. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
*Our PA-10-HALL actuators with 24 VDC motors are compatible with the PA-40, PA-40-24VDC, and PA-41-4-12V24V and FLTCON series of control boxes for multiple actuators that need to move at the same speed synchronously. For more information, please contact sales@progressiveautomations.com to confirm the compatibility of this product with Progressive Automations control boxes.
BROWSE MORE ACTUATORSCustom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
The PA-10-HALL uses built-in proprietary hall effect feedback, which allows for synchronization, speed control, and position control. Hall effect feedback is crucial to applications where multiple actuators must travel in sync. The standard PA-10 like the PA-10-HALL both have the highest IP rating amongst the Progressive Automations’ line of products with a weather protection rating of IP68M and IP69K, allowing the actuator to be fully submerged while in motion and can withstand high-powered water jets while not in motion. In combination with its compact size and high-force rating, the PA-10-HALL is excellent for marine, automotive, and agricultural applications.
For applications that require added corrosion resistance, the PA-10-HALL can be custom ordered in a Salt Spray rated version which features specialized porcelain plated housing. This has been vigorously tested for up to 400 hours of salt spray exposure, ensuring that it will perform in the harshest environments.
For more information on specifications, dimensional drawings, and customization options, please see the PA-10-HALL datasheet. Please see the IP-Rating Guide for more information on these ratings.
Actuators Comparison ChartMOUNTING OPTIONS:
The BRK-09 bracket, compatible with the PA-10-HALL, can be used on either the stroke or motor-end mounting locations and allows for over 180° rotation.
CONTROL SYSTEMS:
The PA-10-HALL is compatible with the wireless PA-40, PA-40-24VDC, and PA-41 hall effect sensor control box as well as the wired FLTCON control box series. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
*Our PA-10-HALL actuators with 24 VDC motors are compatible with the PA-40, PA-40-24VDC, and PA-41-4-12V24V and FLTCON series of control boxes for multiple actuators that need to move at the same speed synchronously. For more information, please contact sales@progressiveautomations.com to confirm the compatibility of this product with Progressive Automations control boxes.
BROWSE MORE ACTUATORSCustom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Read MoreData Sheets
PA-10 User Manual
2D/3D models
3D Models
Complete Guide to IP Ratings
Some of the most frequently asked questions we receive is to do with IP protection and ratings. W...
How to Prevent Water Damage to your Actuator
Electric Linear Actuators are used to automate different types of applications in different envir...
PA-10 Product Overview
Introducing the PA-10 An actuator may sometimes be used in applications that experience harsh env...
Using Actuators on a Camping Trailer for Adventure Vehicles
Overlanding is an exciting way for people to explore remote trails and enjoy a memorable journey ...
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
