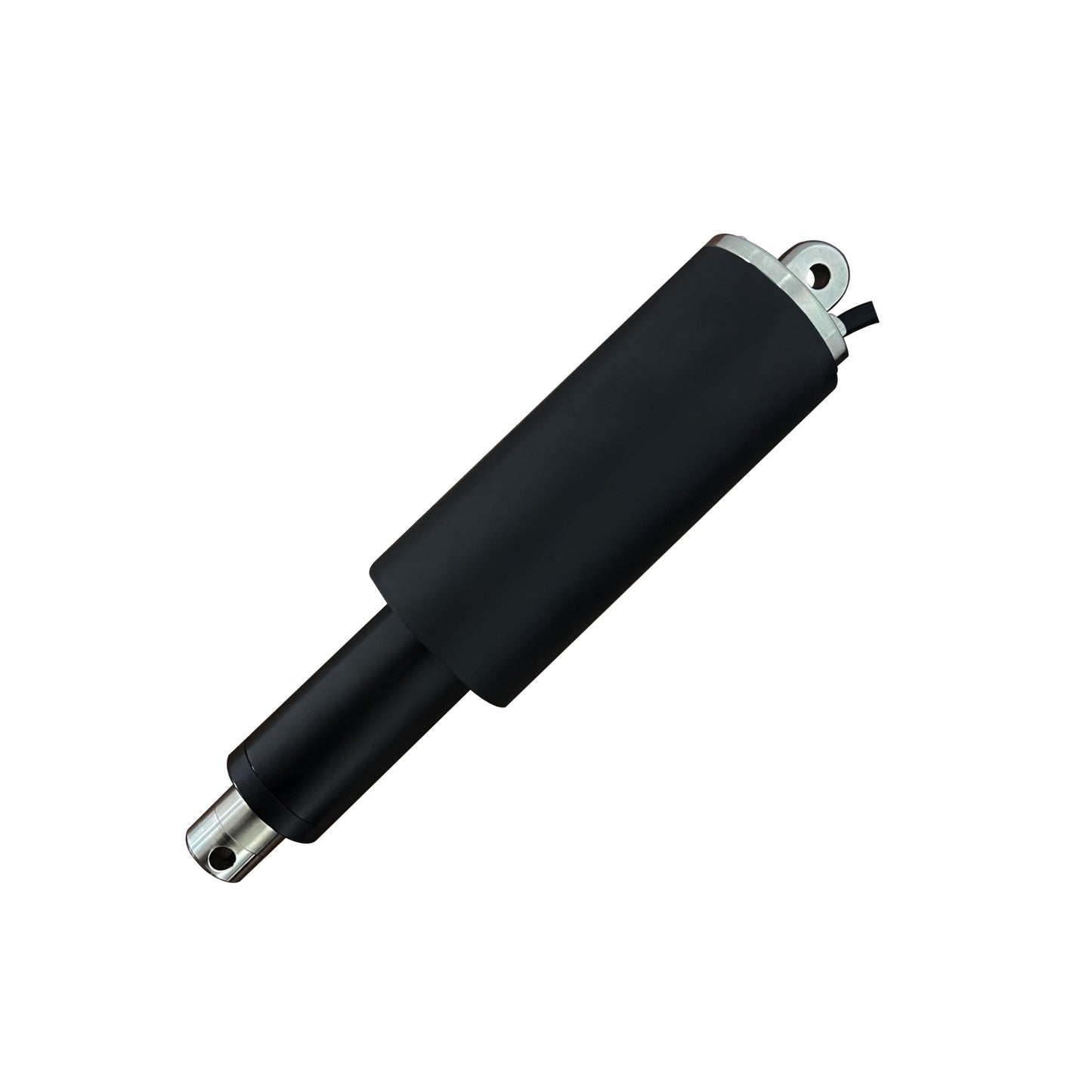

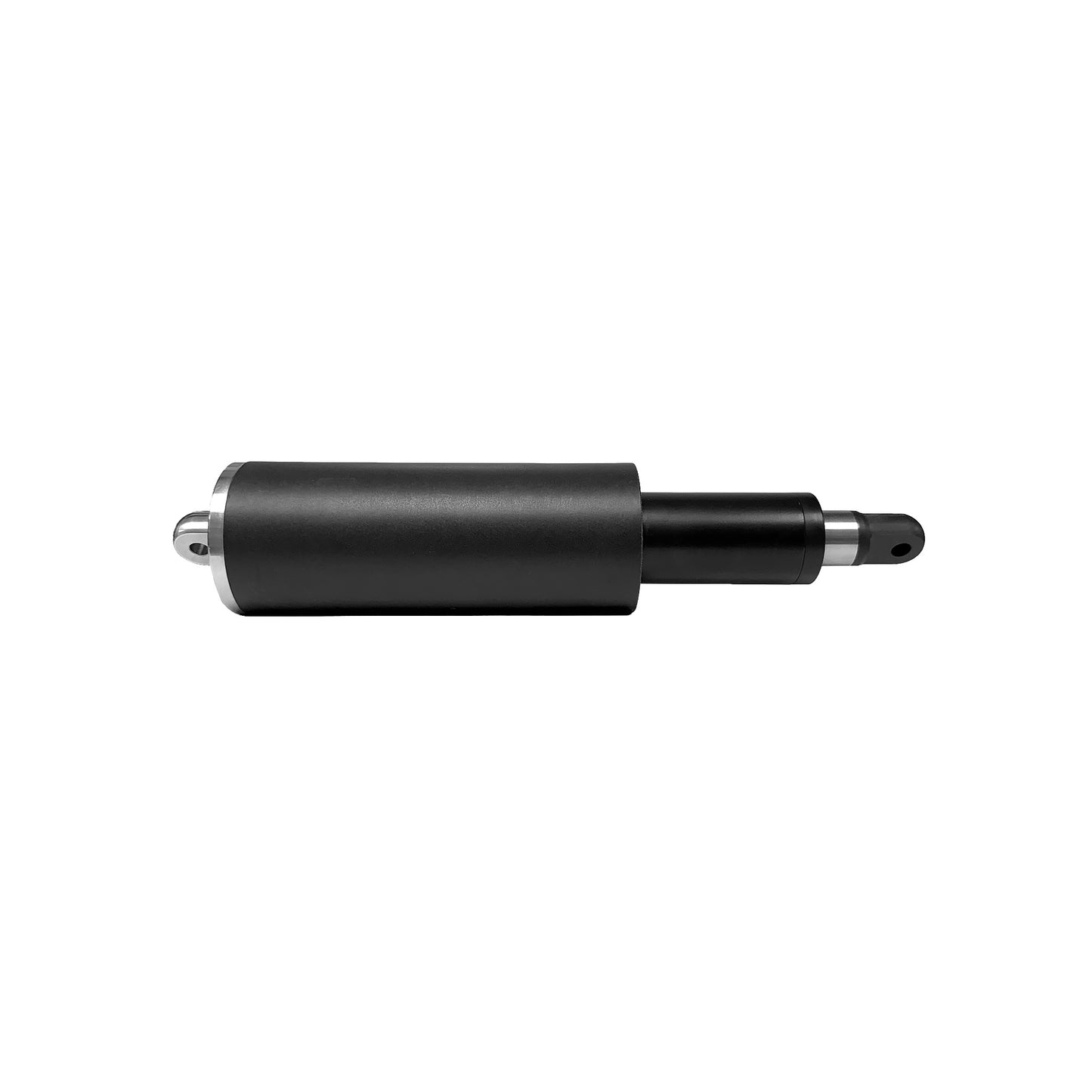

PA-ST2
PA-ST2
Benefits
- Durable construction with stainless steel 316L and aluminum housing for reliable performance in all conditions.
- The PA-ST2 is rated IP67M, providing exceptional protection against dust and water, making it ideal for outdoor and marine applications.
- The PA-ST2 boasts a high-performing brushed DC motor, designed with a 10% duty cycle for optimal operation within designated timeframes.
- This option offers a practical, efficient, and budget-friendly upgrade solution for your current setup without requiring any additional modifications.
Features
- PA-ST2 a high-quality, reliable replacement for trim tab LENCO actuators. With its seamless integration and no need for design modifications, making the switch has never been easier. Streamline your system and improve efficiency with the PA-ST2.
- The actuator's motion is precisely controlled with built-in, non-adjustable limit switches to promote safety and reliability.
-
Mechanical Wear and Tear: Many marine actuators are prone to mechanical degradation over time. The PA-ST2 actuator addresses this with robust construction, designed for longevity.
-
Electrical Issues: Electrical connection problems, common in many actuators, are mitigated in the PA-ST2 through high-quality, corrosion-resistant connections.
-
Corrosion: The PA-ST2 actuator is built to resist corrosion, ensuring functionality in saltwater and other harsh environments.
-
Water Ingress and Seal Failure: Advanced seals in the PA-ST2 actuator provide robust protection against water ingress, reducing the risk of corrosion and extending the actuator's life.
Key Benefits and Features of the PA-ST2
- Exact Replacement: Designed to be a direct drop-in replacement for trim tab LENCO actuators, ensuring seamless integration without the need for design modifications.

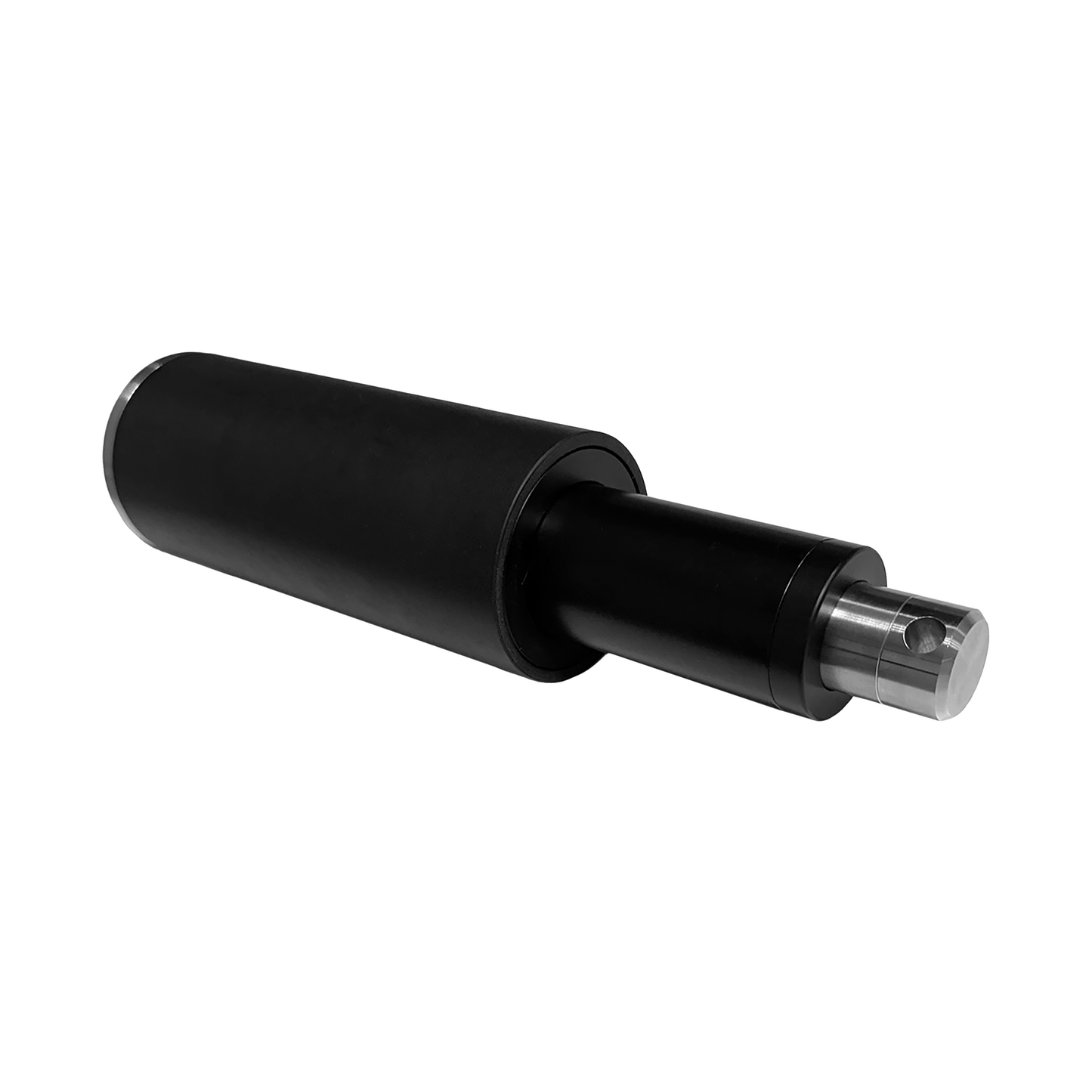

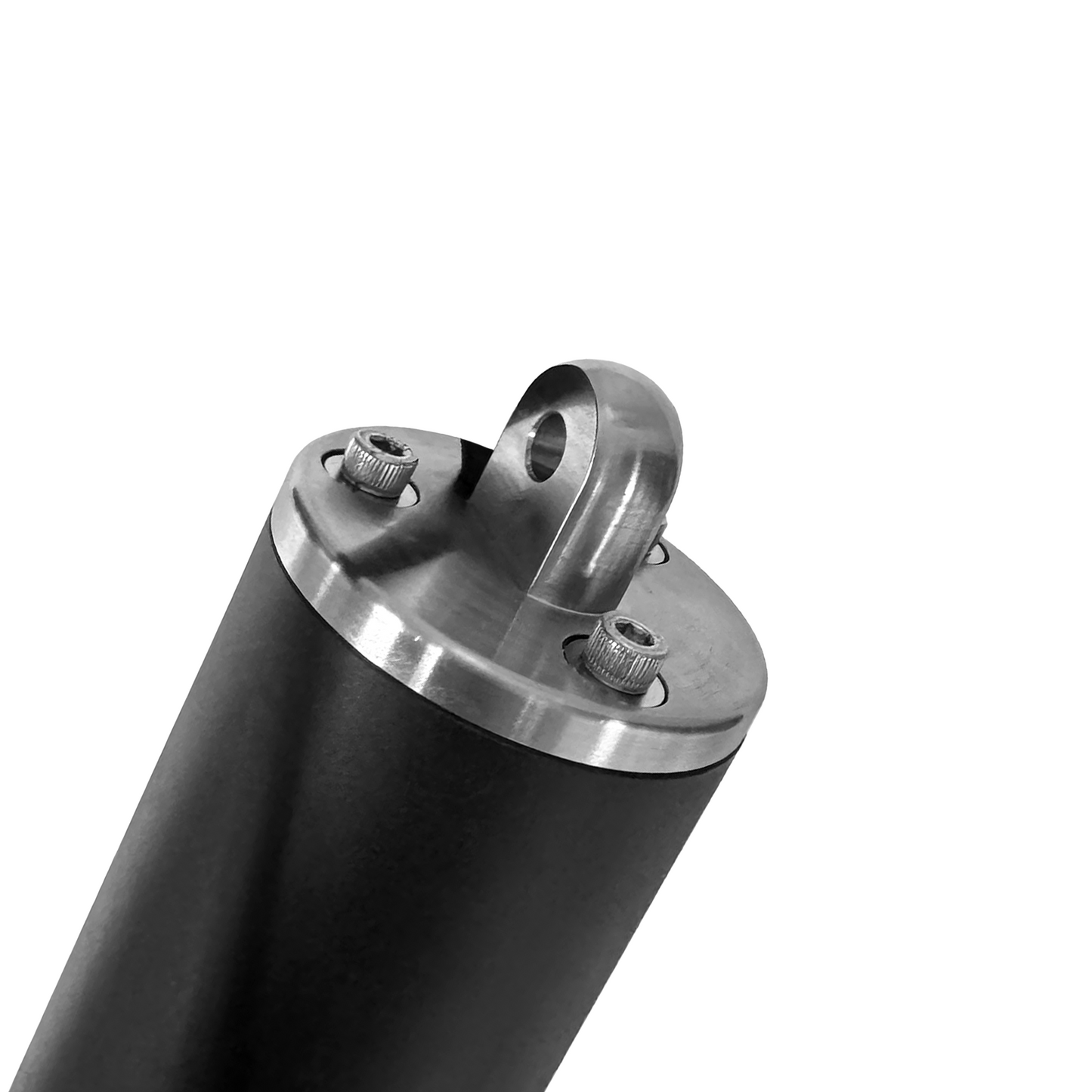

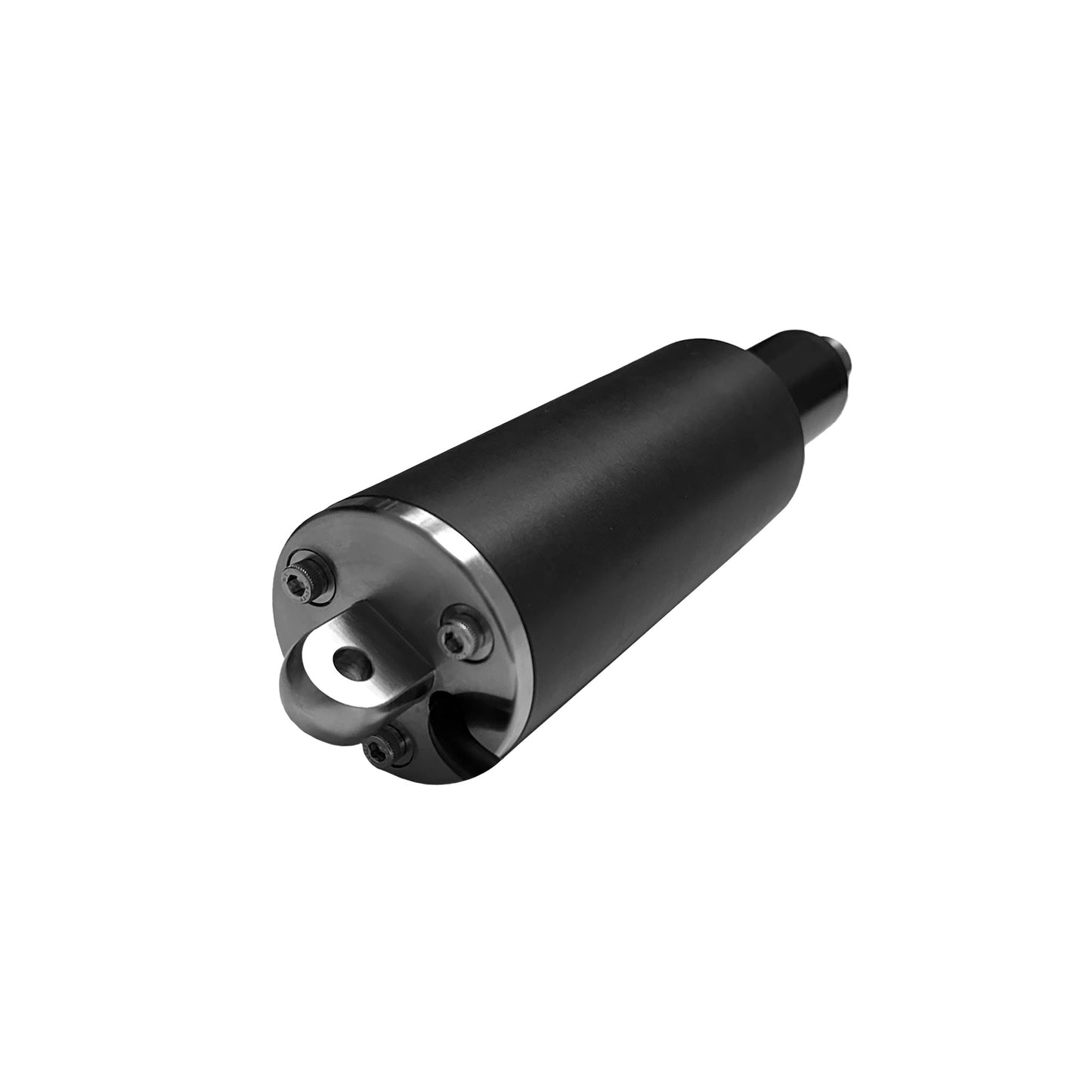

- Durable Construction: Built with long-lasting materials, including a stainless steel 316L stroke rod and aluminum housing, ensuring reliable performance even in harsh conditions.
- Weather Protection: Rated IP67M, offering excellent resistance against dust and water, making it suitable for outdoor and marine use.
- Operational Efficiency: Features a brushed DC motor with a 10% duty cycle, allowing for efficient operation within specified timeframes.
- Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.
- Cost-Effective: Provides a straightforward and economical upgrade option for your current setup, with no need for additional modifications.
-
Mechanical Wear and Tear: Many marine actuators are prone to mechanical degradation over time. The PA-ST2 actuator addresses this with robust construction, designed for longevity.
-
Electrical Issues: Electrical connection problems, common in many actuators, are mitigated in the PA-ST2 through high-quality, corrosion-resistant connections.
-
Corrosion: The PA-ST2 actuator is built to resist corrosion, ensuring functionality in saltwater and other harsh environments.
-
Water Ingress and Seal Failure: Advanced seals in the PA-ST2 actuator provide robust protection against water ingress, reducing the risk of corrosion and extending the actuator's life.
Key Benefits and Features of the PA-ST2
- Exact Replacement: Designed to be a direct drop-in replacement for trim tab LENCO actuators, ensuring seamless integration without the need for design modifications.
- Durable Construction: Built with long-lasting materials, including a stainless steel 316L stroke rod and aluminum housing, ensuring reliable performance even in harsh conditions.
- Weather Protection: Rated IP67M, offering excellent resistance against dust and water, making it suitable for outdoor and marine use.
- Operational Efficiency: Features a brushed DC motor with a 10% duty cycle, allowing for efficient operation within specified timeframes.
- Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.
- Cost-Effective: Provides a straightforward and economical upgrade option for your current setup, with no need for additional modifications.
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Read MoreFichas técnicas

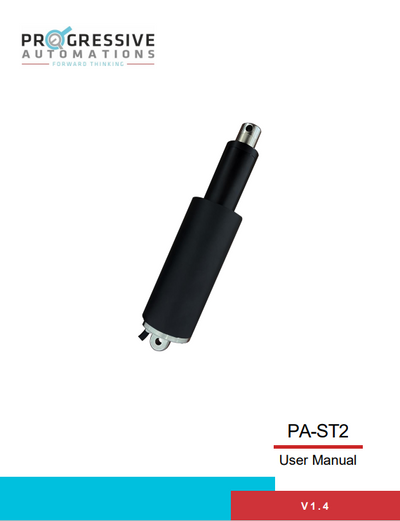

PA-ST2 Data Sheet
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
